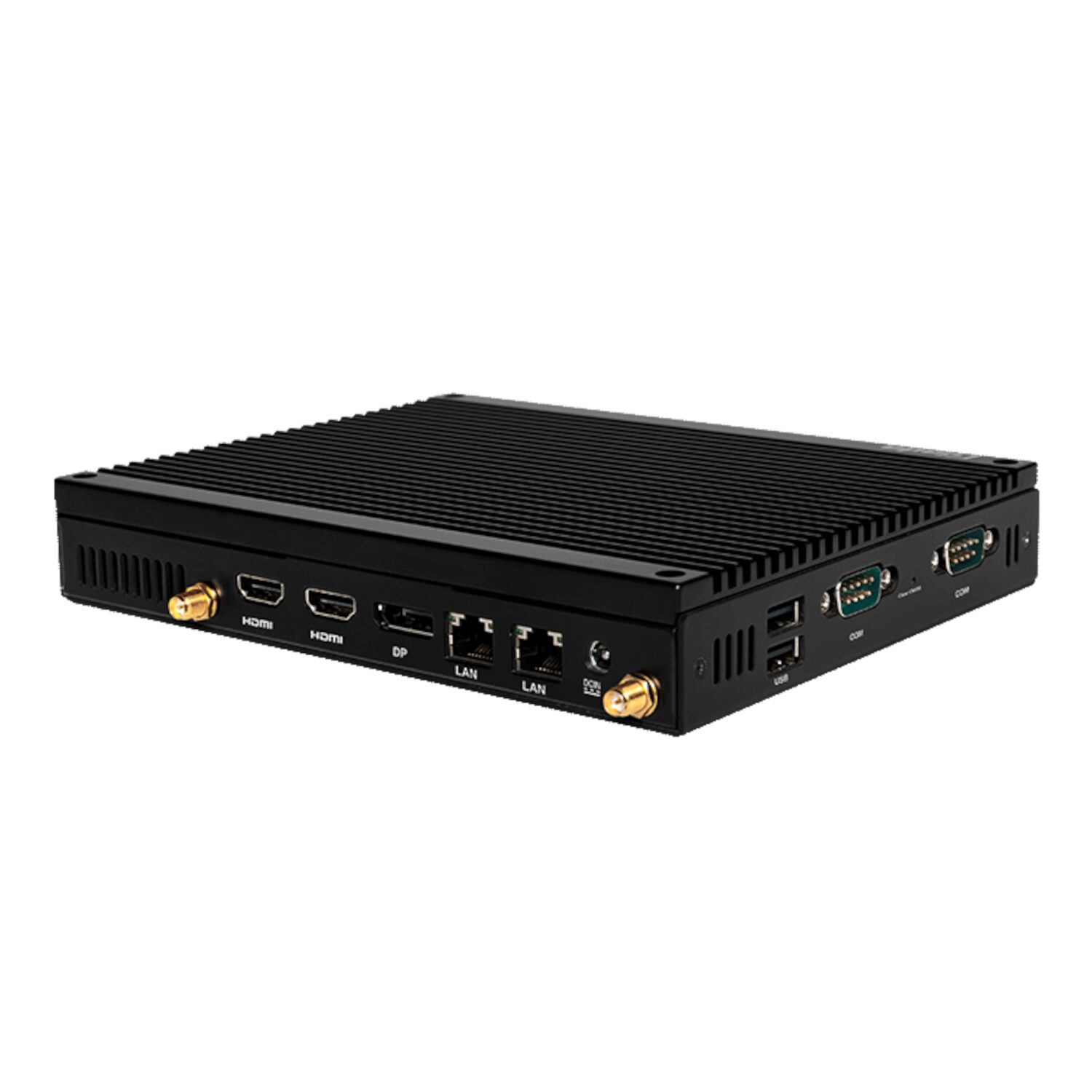

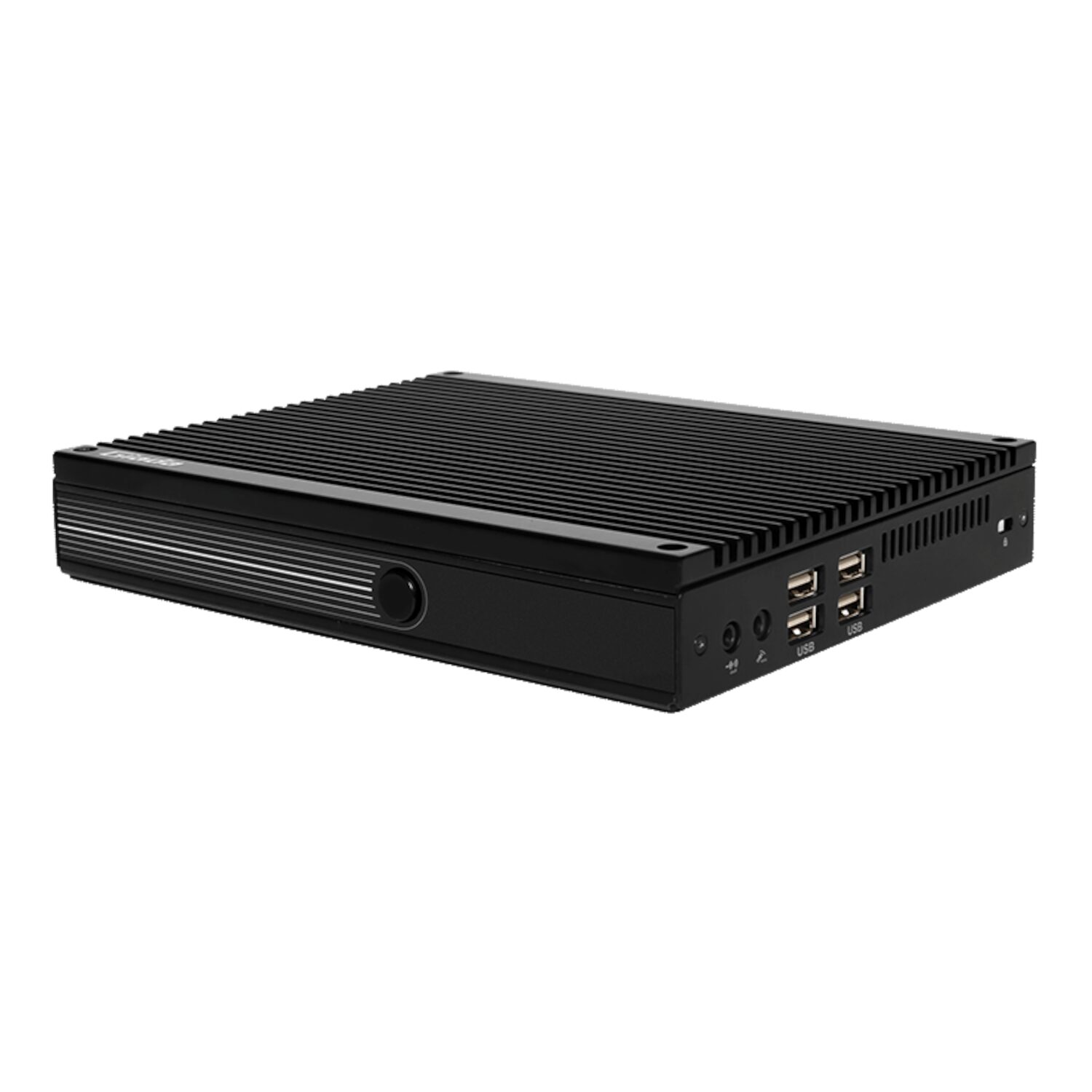

Giada F109D Fanless Embedded Computer, with Intel Twin Lake Processor

The Fanless Embedded Computer Giada F109D is a compact yet powerful solution engineered to meet the demands of modern industrial and commercial environments. Built around Intel’s next-generation Twin Lake platform, this system delivers enhanced processing capabilities, exceptional energy efficiency, and long-term operational reliability, making it ideal for deployment in mission-critical applications such as digital signage, kiosks, retail terminals, and smart automation systems.

Designed with a fanless architecture, the Fanless Embedded Computer Giada ensures silent operation and minimal maintenance, significantly reducing the risk of dust ingress and mechanical failure. Its robust aluminium chassis enhances thermal performance and durability, supporting 24/7 operation even in challenging environments.

Equipped with rich I/O connectivity options, including HDMI, DP, COM, and USB ports, the F109D provides seamless integration with a variety of peripheral devices. Additionally, the inclusion of dual LAN ports and optional 4G LTE or Wi-Fi modules enables flexible networking for dynamic usage scenarios.

For businesses seeking reliability, flexibility, and scalability in a slimline footprint, the Fanless Embedded Computer Giada stands as a future-ready embedded computing platform. Its compact design, industrial-grade stability, and cutting-edge Intel technology empower businesses to drive innovation at the edge with confidence and precision.

FEATURES:

• Powered by an Intel Twin Lake processor for enhanced performance and energy efficiency
• Fanless design ensures silent operation and improved reliability in industrial environments
• Ultra-compact metal chassis optimised for space-constrained applications
• Supports dual independent displays via HDMI and DisplayPort
• Rich I/O options, including USB, COM, and dual LAN ports for flexible connectivity
• Expandable with optional Wi-Fi and 4G LTE modules for versatile networking
• Wide operating temperature range ensures stability in diverse deployment scenarios
• Ideal for digital signage, retail terminals, kiosks, and edge computing use cases
• Supports TPM for enhanced security and data protection
• Long product lifecycle and industrial-grade durability for 24/7 uptime

SPECIFICATIONS:

• CPU
• CPU: Intel Processor N150 /N97
• Turbo Frequency: 3.60 GHz / 3.60 GHz
• Chipset: SoC
• Processing Units: 4 Cores / 4 Cores
  TDP: 6 W / 12 W
• System
• System Memory: 8 GB /16 GB, 1 x SO-DIMM DDR5-4800 MHz
• Storage:
  • 1 x M-Key M.2 (2280) PCIe3.0 X4 for SSD
  • Optional: 32GB / 64 GB, onboard eMMC
• Watchdog Timer: Yes
• Auto Power On: Yes
• RTC: Set up independently every day, for a week, as a cycle
• Power Requirement: DC-IN, 19 V/2.37 A
• Dimensions: 189.6mm x 148.3mm x 31.7mm (7.46” x 5.83” x 1.25”)
• Construction: Metal, Black
• Operating System: Windows 11 (64-bit) /Linux Ubuntu (64-bit)
• Operating Temperature: 0°C ~45°C @0.7m/s Air Flow
• Certifications: CE, FCC Class B, UKCA
• Humidity: 95% @ 45°C (non-condensing)
• Network
• Network Controller: 2 x Realtek RTL 8111H Gigabit Ethernet
• Ethernet Interface: 2 x 1 GbE RJ45
• Wi-Fi/BT:
  • 1 x E-Key M.2 (2230) for Wi-Fi/BT
  • Support Wi-Fi 5, Wi-Fi 6
• Mobile Network:
  • 1 x B-Key M.2 (3042) for 3G/4G
  • 1 x SIM Slot
• Display
• GPU: Intel Graphics
• Graphic Engine: DirectX 12.1, OpenGL 4.6, OpenCL 3.0
• Display Interface:
• 1 x DP (Max.4096 x 2160 @60Hz)
• 2 x HDMI (Max.4096 x 2160 @60Hz)
• I/O interface
• USB
  • 2 x USB3.2 Gen2
  • 4 x USB2.0
• Serial Port: 2 x RS232
• Audio: 1 x MIC-IN, 1 x AUDIO-OUT
• Button: 1 x Power on, 1 x CLR-CMOS
• Antenna: 2 x Connector for Wi-FI/BT

WHAT'S IN THE BOX:

• Giada F109D Fanless Embedded Computer, with Intel Twin Lake Processor x1
